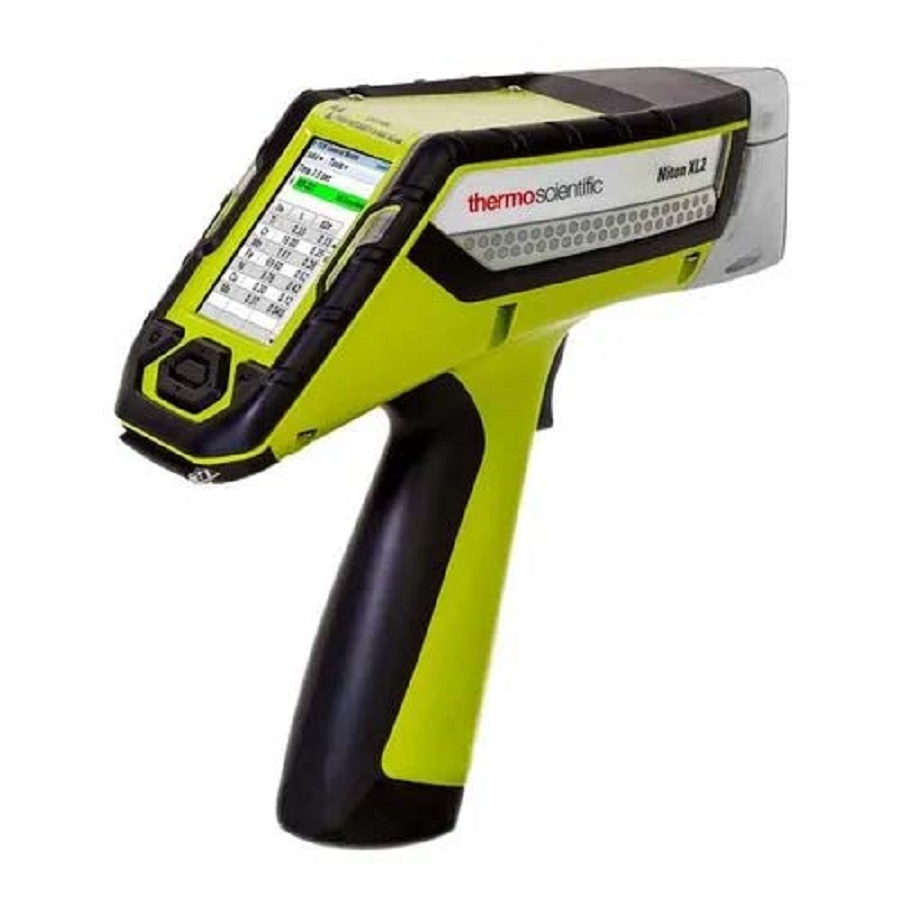

HH XRF METAL ANALYSER - MG-U

Name: HH XRF METAL ANALYSER - MG-U
Brand: MULTITECH ENVIRO ANALYTICAL LLP
Price: 1880000.0 INR
Availability: InStock

Price 1880000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HH XRF METAL ANALYSER - MG-U Specification

Power Supply
7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply

Port Size
8MM

Machine Weight
1.80 Kilograms (kg)

Test Width
10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm) Centimeter (cm)

Control Mode
Silicon drift detector (SDD)

HH XRF METAL ANALYSER - MG-U Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
4

About HH XRF METAL ANALYSER - MG-U

Outstanding Service and Support keep the analyzer in optimal working order

Exceptional ergonomics superior balance of size and light weight.

Easy-to-navigate software system with large characters for error-free data input. Go from start-up to testing in three easy steps!

High-strength, rugged, environmentally sealed housing protects internal components from unwanted dirt, dust, heat, moisture, etc.

Fastest throughput of any handheld XRF analyzer on the market typical time for routine positive grade identification is less than two seconds.

Unmatched battery use time 10-12 hours between charges!

Multiple safety features, such as proximity buttons and count-rate proximity sensors.

A strong commitment to Research and Development continues to drive greater reliability through technological innovation that smaller competitors cannot match.

With WIFI Data Transfer Feature.

Product Specifications

Weight 3.4 lbs with battery (1.53 kg)

Dimensions 10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm)

X-Ray Source X-Ray Tube: Ag anode (6-45kV, 1-200uA, 2W max)

Dynamically adjustable current for optimal sensitivity on every analysis

Detector Silicon Drift Detector (SDD)

Detector ProGuard protection included

Spot Size 8 mm collimation

Analytical Range Mg-U

Calibration Modes General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint,

Lead in Paint Products

Libraries Default alloy libraries based on SAE, AISI, ASTM, AA standards Users may create and edit libraries

System Check Built-in standardization via automatic system check

IP Rating IP54 (splash and dust proof)

Operating Environment Temperature: -10C to 50C

Humidity: 0% to 80% relative humidity non-condensing

Display Fixed angle, color, resistive touchscreen display

Power 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply

Hot swap functionality keeps analyzer powered during battery replacements

Camera Integrated CCD micro camera for locating and recording measurement positions

Global Positioning System Optional external GPS (via Bluetooth)

Bluetooth Supports print functionality, external GPS connectivity and barcode reader

Memory / Data Storage 64 MB internal system memory / 128 MB internal user storage

Stores approximately 10,000 readings with spectra (fewer if images are saved)

Data Entry Touchscreen keyboard

User customizable data entry

Optional wireless remote barcode reader

Data Transfer USB, Bluetooth, and RS-232 serial communication

Operating System Proprietary

Support Software Niton Data Transfer (NDT) PC software

Security Password-protected user security

Languages English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech

Standard Accessories

Locking shielded carrying case

Two (2) lithium-ion battery packs

One (1) 110/220 VAC battery charger/ AC adaptor

Check samples, Belt holster, Safety lanyard

PC connection cables (USB and RS-232)

Optional Accessories Thermo Scientific portable test stand

Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1

Advanced Metal Analysis Technology

Harnessing the capabilities of a silicon drift detector (SDD), the HH XRF METAL ANALYSER - MG-U ensures reliable and efficient metal composition results. The precise control mode, combined with an 8mm port size, enables targeted analysis across a variety of samples, making it suitable for both fieldwork and laboratory settings.

Portable Design with Flexible Power Options

Designed for mobility, this analyser weighs just 1.80 kg and features a compact footprint. Its dual power options-a 7.4V lithium-ion battery or 12V DC power supply-ensure continuous operation wherever your work takes you, minimizing downtime and maximizing productivity on-the-go.

FAQ's of HH XRF METAL ANALYSER - MG-U:

Q: How does the HH XRF METAL ANALYSER - MG-U determine metal composition?

A: The device utilizes a silicon drift detector (SDD) to perform X-ray fluorescence (XRF) analysis, identifying and quantifying the elements present in metal samples with high accuracy and speed.

Q: What are the main benefits of using the MG-U analyser for metal testing?

A: Key benefits include rapid and accurate on-site analysis, lightweight portability at 1.80 kg, and flexible power options, making it an excellent choice for exporters, suppliers, and traders requiring immediate verification of metal composition.

Q: When is the HH XRF METAL ANALYSER typically used during the trading or export process?

A: It is most often used during material receiving, quality control checks, and before dispatch to verify that metals meet regulatory standards and client specifications.

Q: Where can the MG-U analyser be effectively operated?

A: Thanks to its compact design and battery-powered operation, it can be efficiently used in warehouses, manufacturing sites, ports, or remote field locations.

Q: What is the process of using the analyser to test a sample?

A: Simply position the sample on the testing platform, align the 8mm port to the test area, and initiate analysis through the device interface. Results are available within seconds, streamlining quality control procedures.

Q: How long does the device operate on its lithium-ion battery?

A: Operational time varies based on test frequency, but the 7.4V lithium-ion battery provides ample runtime for standard field or laboratory sessions, with an alternative 12V DC, 3A power supply for extended usage.
