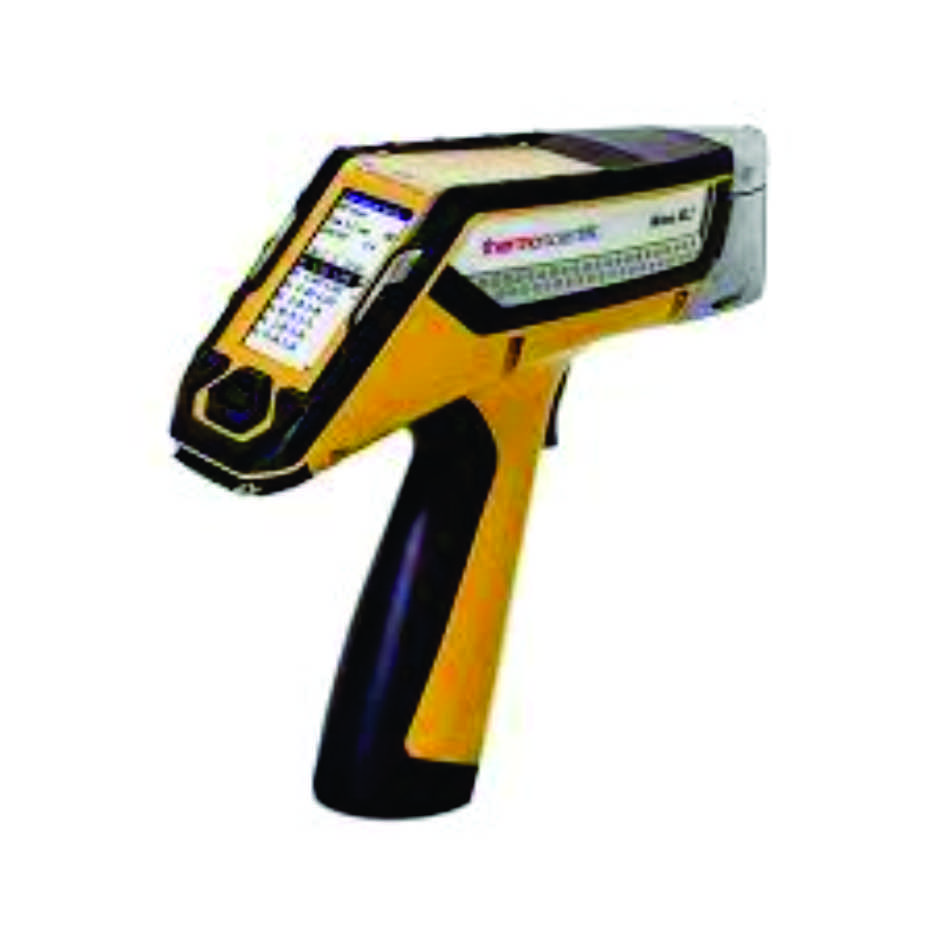

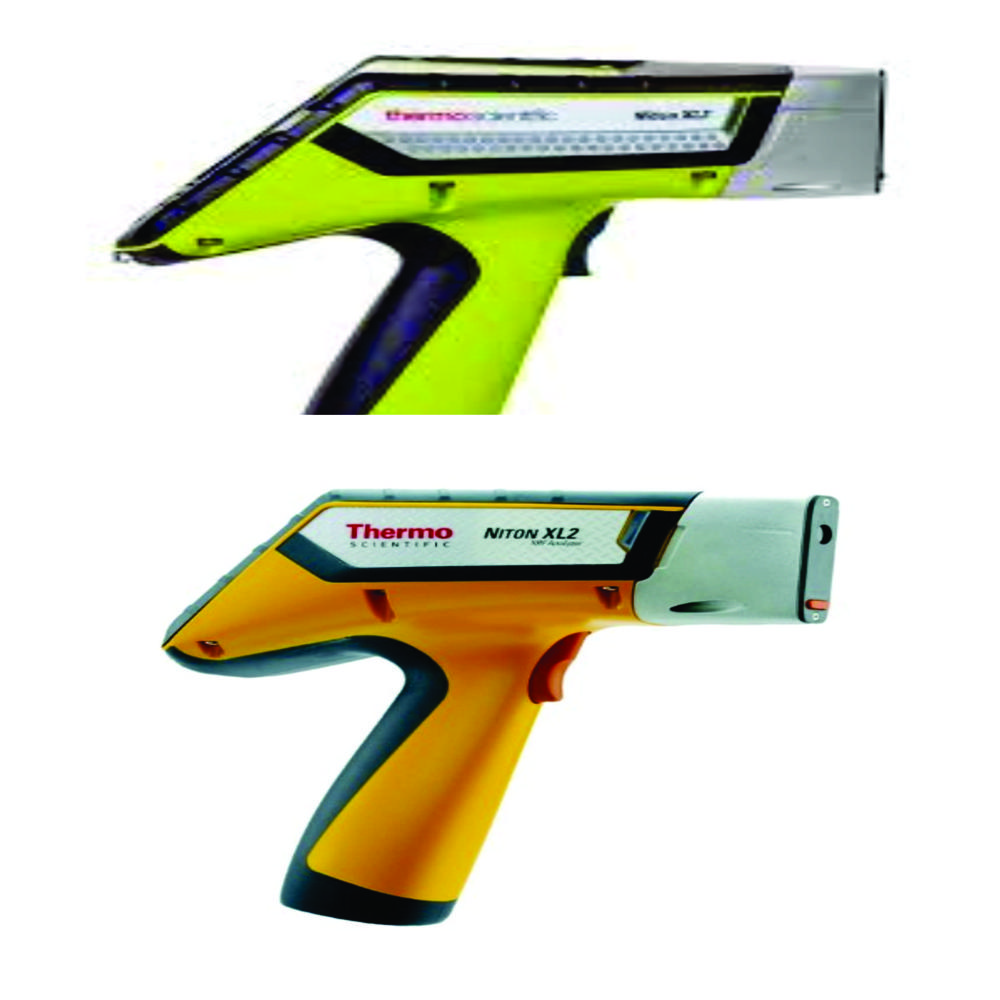

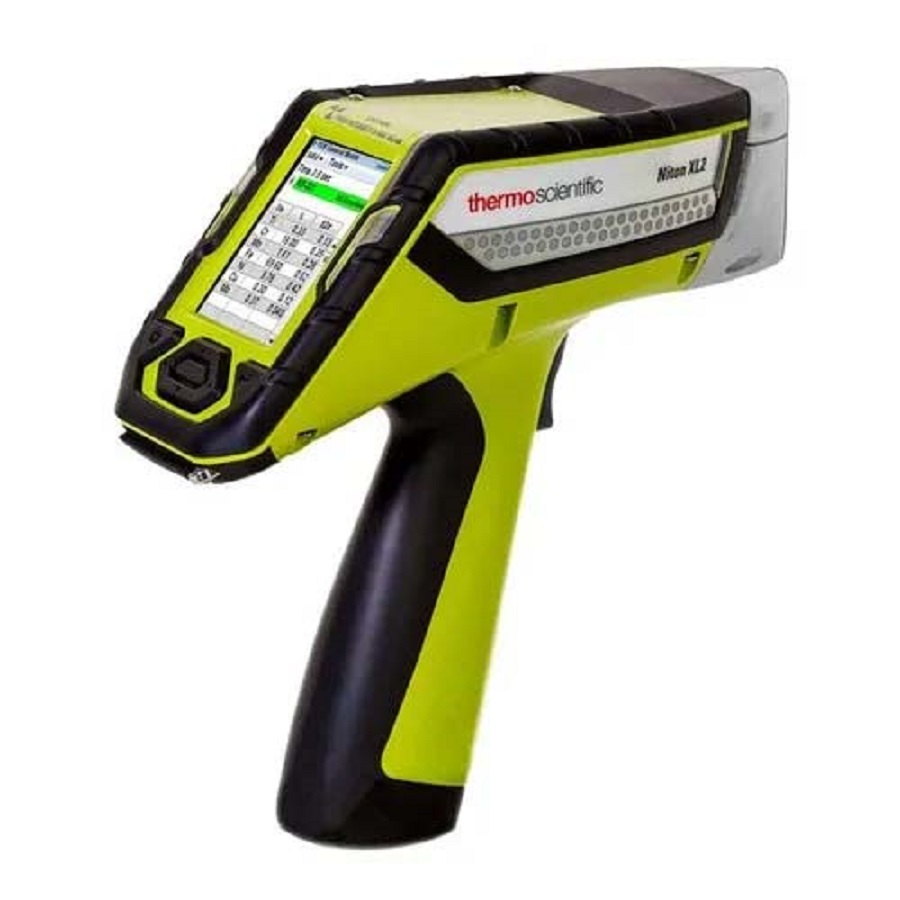

HH XRF METAL ANALYSER - MG-U

About HH XRF METAL ANALYSER - MG-U

         Outstanding Service and Support keep the analyzer in optimal working order

         Exceptional ergonomics superior balance of size and light weight.

         Easy-to-navigate software system with large characters for error-free data input. Go from start-up to testing in three easy steps!

         High-strength, rugged, environmentally sealed housing protects internal components from unwanted dirt, dust, heat, moisture, etc.

         Fastest throughput of any handheld XRF analyzer on the market typical time for routine positive grade identification is less than two seconds.

         Unmatched battery use time 10-12 hours between charges!

         Multiple safety features, such as proximity buttons and count-rate proximity sensors.

         A strong commitment to Research and Development continues to drive greater reliability through technological innovation that smaller competitors cannot match.

         With WIFI Data Transfer Feature.

Product Specifications

      Weight    3.4 lbs with battery (1.53 kg)

      Dimensions            10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm)

      X-Ray Source         X-Ray Tube: Ag anode (6-45kV, 1-200uA, 2W max)

      Dynamically adjustable current for optimal sensitivity on every analysis

      Detector                 Silicon Drift Detector (SDD)

      Detector ProGuard protection included

      Spot Size                8 mm collimation

      Analytical Range Mg-U

      Calibration Modes                 General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint,

      Lead in Paint Products

      Libraries Default alloy libraries based on SAE, AISI, ASTM, AA standards Users may create and edit libraries

      System Check        Built-in standardization via automatic system check

      IP Rating                IP54 (splash and dust proof)

      Operating Environment        Temperature: -10C to 50C

      Humidity: 0% to 80% relative humidity non-condensing

      Display   Fixed angle, color, resistive touchscreen display

      Power     7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply

      Hot swap functionality keeps analyzer powered during battery replacements

      Camera   Integrated CCD micro camera for locating and recording measurement positions

      Global Positioning System  Optional external GPS (via Bluetooth)

      Bluetooth                Supports print functionality, external GPS connectivity and barcode reader

      Memory / Data Storage         64 MB internal system memory / 128 MB internal user storage

      Stores approximately 10,000 readings with spectra (fewer if images are saved)

      Data Entry              Touchscreen keyboard

      User customizable data entry

      Optional wireless remote barcode reader

      Data Transfer         USB, Bluetooth, and RS-232 serial communication

      Operating System Proprietary

      Support Software   Niton Data Transfer (NDT) PC software

      Security Password-protected user security

      Languages             English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech

Standard Accessories

      Locking shielded carrying case

      Two (2) lithium-ion battery packs

      One (1) 110/220 VAC battery charger/ AC adaptor

      Check samples, Belt holster, Safety lanyard

      PC connection cables (USB and RS-232)

      Optional Accessories           Thermo Scientific portable test stand

Compliance           CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1
